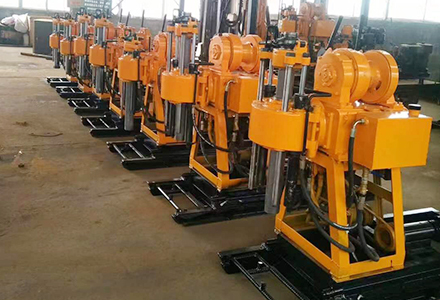

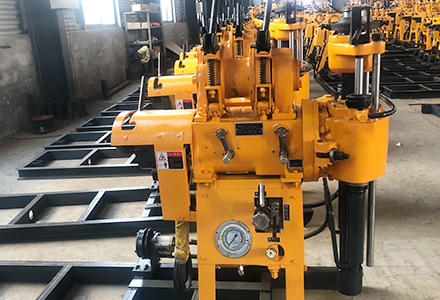

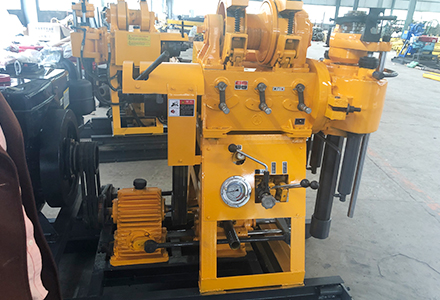

QRD-130180200YY Drilling Rig Series

1.The drilling rig adopts an automatic telescopic drilling tower, supported by two high-strength oil cylinders, and a set of hydraulic valves controls the pitching of the drilling tower. The operation saves time and labor, is safe and reliable, and maximizes benefits for users.
2 . The chassis adopts rubber track, which is light in weight, which can reduce the noise of the vehicle running mechanism, reduce the vibration of the vehicle body, greatly reduce the fuel consumption, and can walk on the urban road without hurting the road surface.
3、The chassis comes with hydraulic high outriggers, which can be used for drilling rig leveling, loading and unloading trucks, and as auxiliary support during work.
4、The use of 24V electric starting diesel engine reduces the labor intensity of the operator, especially in the cold season, when the diesel engine is difficult to start, it shows great advantages.
5、This machine is equipped with BW-160 mud pump, which has large pump flow and pressure, convenient maintenance, and easy purchase of spare parts all over the country.
6、Optional hydraulic screwing machine (75-168mm) can be installed to improve work efficiency and reduce labor costs.



The main technical parameters：

model	XYD-130	XYD-180	XYD-200
Drilling depth(m)	130	180	200
Opening diameter(mm)	220	220	325
End hole diameter(mm)	75	75	75
Drill pipe diameter(mm)	42-60	42-60	42-60
Drilling inclination(°)	90-75	90-75	90-75
Supporting power （kW）	13.2	13.2	15
weight （kg）	3350	3400	3600
Rig size L*W*H （mm）	3.8*1.95*2.7	3.8*1.95*2.7	3.8*1.95*2.7
Vertical shaft speed （r/min）	142/285/570	130/300/480/730/830/1045	64/128/287/557
Vertical axis travel(mm)	450	450	450
Track Specifications（mm）	350*90*48	350*90*48	350*90*48
Climbing angle(°)	20°	20°	20°
Walking speed（km/H)	10	10	10
Hydraulic outrigger height (mm）	1300	1300	1300
Rated load(ton)	2	2	5
effective height(m)	6	6	6
flow(L/min)	160	160	160
greatest pressure （Mpa)	1.3	1.3	1.3
Reciprocating times (times/min)	165	165	165
Suction pipe diameter （mm）	51	51	51
Outlet diameter （mm）	32	32	32
