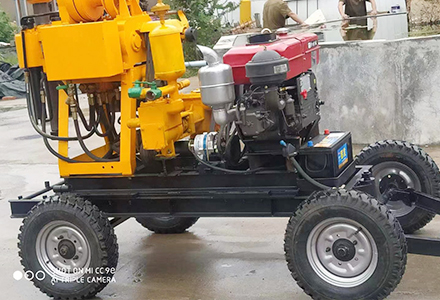

200m rotary water well drilling rig with 4 wheels

HZ-130/180/200 series drilling rigs can increase the drilling rig shift slide, which can realize quick replacement of drilling tools, improve work efficiency and reduce labor intensity. ​





Share With:
PRODUCT DESCRIPTION
HZ-130/180/200 series drilling rigs can increase the drilling rig shift slide, which can realize quick replacement of drilling tools, improve work efficiency and reduce labor intensity. ​​
Scope of application:
1. This drilling rig is a high-speed drilling rig suitable for census exploration, geophysical exploration, road and building exploration, blasting holes and other drilling projects.
2. Drill bits such as alloys, diamonds and composite sheets can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.
  main feature:
1. With hydraulic automatic feeding mechanism, it can improve drilling efficiency and reduce labor intensity of workers.
2. The ball clamping mechanism is used instead of the chuck, which can realize the reverse lever without stopping, which is easy to operate, safe and reliable.
3. The winch is equipped with a cage to form a double-sided support star wheel structure, which can withstand strong impacts
4. The positioning of four sets of bearings in the vertical shaft box ensures that the gyrator has enough rigidity to deal with complex geological conditions such as gravel layer and pebble layer.
5. The machine adopts a taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.

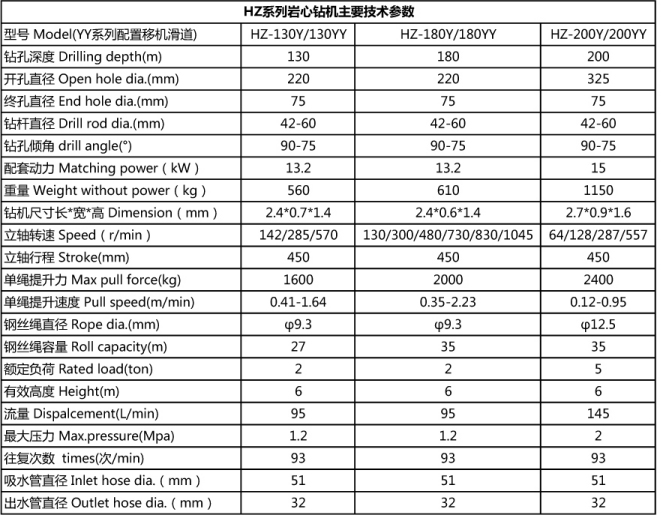

TECHNICAL PARAMETERS
