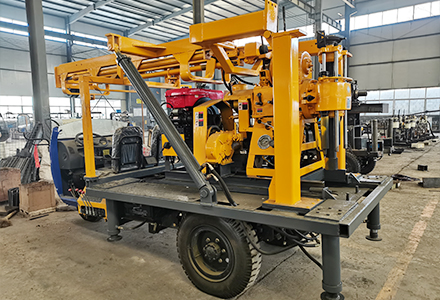

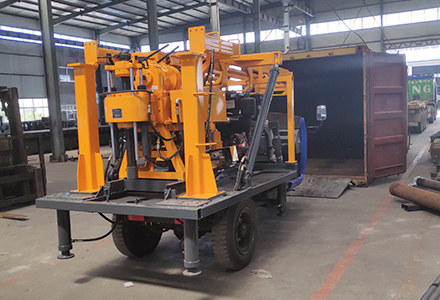

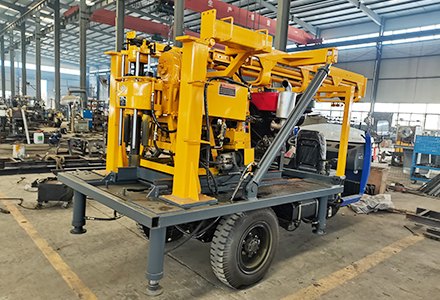

QRC-200 Tricycle Vehicle Drilling Rig

1. QRC-200 truck-mounted drilling rig is a multi-functional hydraulic truck-mounted vertical axis rotary drilling rig
2. The vehicle chassis adopts Wuzheng three-wheeled vehicle 7YP-1475D1. The drilling rig transmission system, winch, mud pump and other important accessories are installed on this chassis. The layout is reasonable and compact, and the operation is easy.
3. Equipped with BW-160 mud pump, with high pressure and large flow, to ensure the drilling depth and hole diameter
4. The drilling rig is equipped with a mobile device, which can realize the forward and backward movement of the drilling rig host itself, which is convenient for wellhead operation.
5. The hydraulic lifting and falling folding drilling tower of the drilling rig tower is safe and convenient to operate.
  Adaptation:
Geological census and exploration, foundation exploration of roads and high-rise buildings, inspection holes of various concrete structures, river dams, drilling and direct grouting of subgrade grouting holes, civil water wells and geothermal central air conditioning, etc.



technical parameter
Drilling depth (m)	200
Drilling diameter (mm)	325
Drilling inclination (°)	75
Vertical shaft speed (r/min)	64/128/287/557
Vertical shaft travel (mm)	450
Main hoist lifting capacity (single rope) (Kg)	1600
Main hoist rope capacity (m)	35
Reel lifting speed (r/s)	17/35/75/151
Wire rope diameter (mm)	12.5
Tower height (mm)	7000
Effective height of rig (mm)	6500
Active drill pipe (mm)	59*53
Drill pipe (mm)	42/ 50/60
Rig weight (kg)	3000
Engine Model: :	ZS1115 Diesel Engine
Rated power	14.7kw/2200rpm
BW-160 Mud Pump Rated Flow (L/min)	160
Rated pressure (Mpa)	1.3
Driving power (kw)	5.15
Host weight (kg)	190
Dimensions (mm)	1110*725*965
Chassis Model Wuzheng three-wheeled vehicle	7YP-1475D1
Drive form	Rear drive
Engine Model	Changchai ZS1115E2
Emission standard	GB18322-2002/GB19756-2005 (Ⅱ)
Rated power (KW)	16.2
Speed (r/min)	2200
