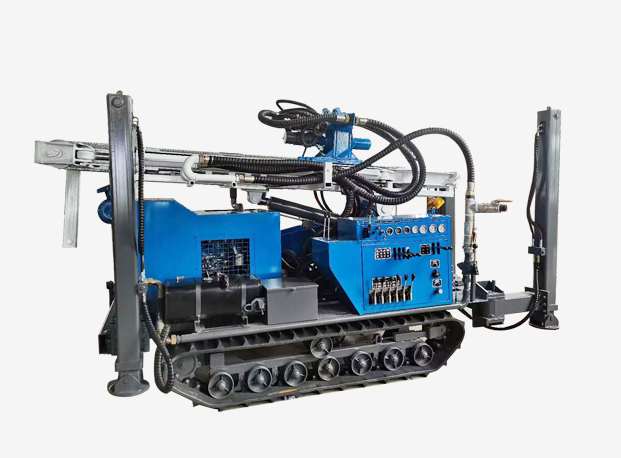

QR 180 DTH Drill Rig | |||
The weight(T) | 4.5 | Drill pipe diameter(mm) | Φ76 Φ89 |
The hole diameter(mm) | 140-254 | Drill pipe length(m) | 1.5m 2.0m 3.0m |
Drilling depth(m) | 180 | Rig lifting force(T) | 12 |
One-time advance length(m) | 3.3 | Rapid rise speed(m/min) | 20 |
Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
Climbing angles(Max.) | 30 | Width of loading(m) | 2.4 |
Equipped capacitor(kw) | 55 | Hoisting force of winch(T) | -- |
Using air pressure(MPA) | 1.7-2.5 | Swing torque(N.m) | 3200-4600 |
Air consumption(m³/min) | 17-31 | Dimension(mm) | 3950×1630×2250 |
Swing speed(rpm) | 45-70 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency(m/h) | 10-35 | High leg stroke(m) | 1.4 |
