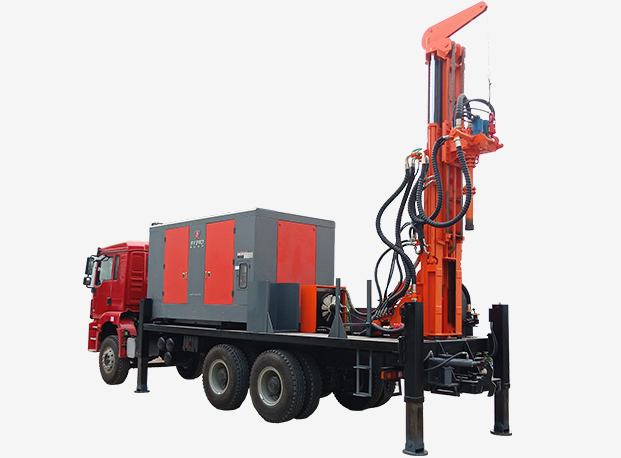

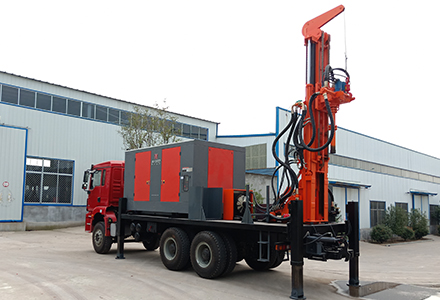

350m DTH Drill Rig
350m DTH Drill Rig

350m DTH Drill Rig

QYC350
Total WeightT 22
Drilling Diametermm 140-325
Drilling Dephm 350
Strokem 6
Rated air volume of air compressorm³/min 31
Air compressor rated discharge pressurebar 25
Walking speedkm/h 80

Share With:
Product description
Our DTH Water Well Drilling Machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, low failure rate, which has been recognized by the market, and has been widely used in mine engineering construction, civil drilling, ground temperature drilling and other fields.











TECHNICAL PARAMETERS
QYC350
Total WeightT 22
Drilling Diametermm 140-325
Drilling Dephm 350
Strokem 6
Rated air volume of air compressorm³/min 31
Air compressor rated discharge pressurebar 25
Walking speedkm/h 80
Applicable drill pipe diametermm 89  102
Drill pipe lengthm 3
Lifting forceT 20
Swing speedrpm 45-120
Swing torqueN.m 6200-8500
working pressureMpa 2.5
Air consumptionm³/min 31
Vehicles Dongfeng Motor
car engine powerKW 191
Air compressor engine powerKW 309
drive form 6×4
Tire specifications 10R20
steering wheel left
Dimensionsmm 10000×25000×45000
