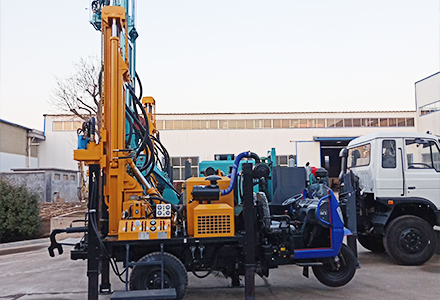

Tricycle mounted 200m DTH Drill Rig

Tricycle mounted 200m DTH Drill Rig

 Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling rig Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;


Share With:
PRODUCT DESCRIPTION
 Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling rig Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump.















TECHNICAL PARAMETERS
QRL 200vehicle-mounted water well drilling rig
The weight(T) 4.7 Drill pipe diameter(mm) Φ76  Φ89
The hole diameter(mm) 140-254 Drill pipe length(m) 1.5m  2.0m  3.0m
Drilling depth(m) 200 Rig lifting force(T) 13
One-time advance length(m) 3.3 Rapid rise speed(m/min) 20
Walking speed(km/h) 20-40 Fast feeding speed(m/min) 40
Climbing angles(Max.) 30 Swing speed(rpm) 45-65
Equipped capacitor(kw) 65 Hoisting force of winch(T) ----
Using air pressure(MPA) 1.7-2.5 Swing torque(N.m) 3400-4700
Air consumption(m³/min) 17-31 Dimension(mm) 4350×1600×2450
The penetration efficiency(m/h) 10-35 High leg stroke(m) 1.4
The engine brand Quanchai engine
