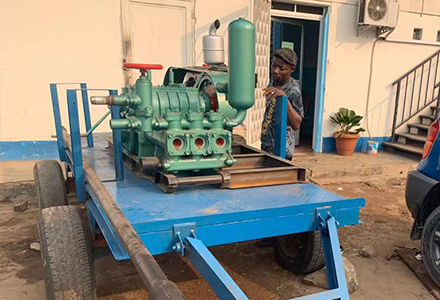

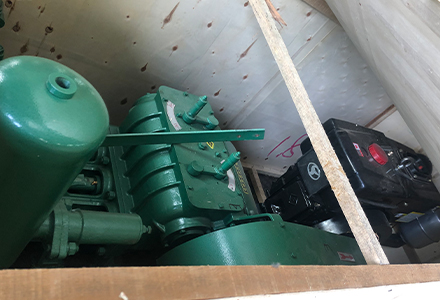

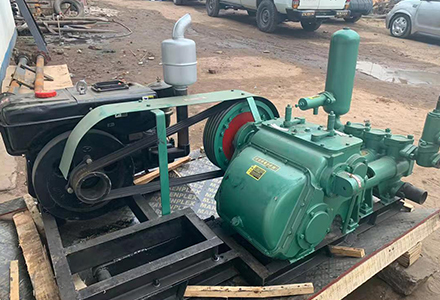

BW250 Mud Pump

Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in engine.It’s mostly for 250m deep water well drilling.
BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.



Share With:
PRODUCT DESCRIPTION
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in engine.It’s mostly for 250m deep water well drilling.
Application
BW 250 water Drilling Mud Pump , 250L/min with 25bar triplex. single acting reciprocation piston pump
BW250 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.
They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
BW-250 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.
Characteristics
1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.
































































TECHNICAL PARAMETERS
Name BW-250
Type Horizontal,Three-cylinder single-acting,
reciprocal piston pump
Stroke 100 mm
Liner Dia 80mm 65mm
Gears I II III IV I II III IV
Pump Speed(times/min) 200 116 72 42 200 116 72 42

Displacement(liter/min) 250 145 90 52 166 96 60 35

Pressure(MPa) 2.5 4.5 6 6 4 6 7 7

Volume fraction 85%
Combined efficiency 72%
Input power 15 Kw
Triangle Type B ×5 Groove 410 mm
leather belt
pitch dia
Input speed 500 r/min
Max. 2.5 m
Suction head
Suction φ76 mm
Pipe Dia.
Discharge φ51 mm
Pipe Dia.
Measurement 1100 × 995 × 650 mm
Weight 500 Kg
