PDC drill bit

1. Big hole design, chip space is big, high drilling efficiency in soft rock.
2. Cutting free surface, sharp blade, with self-sharpening feature, high drilling efficiency.
3. High resistance to wear.
4. According to stratum characteristics, selecting different drilling and surface structure, bit strong adaptability.



Share With:
PRODUCT DESCRIPTION

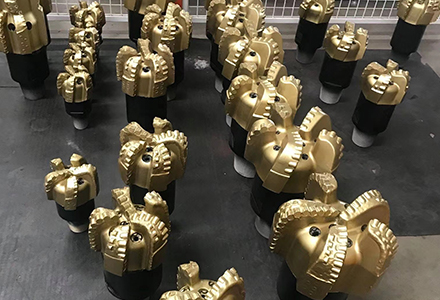

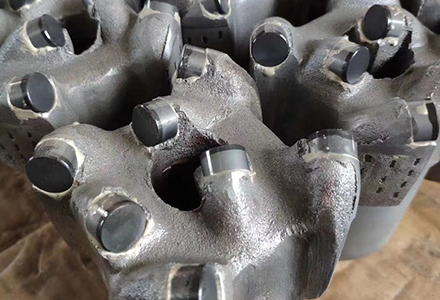

Sinter matrix body PDC drilling bit for gas oilfield & mining water well drilling
Features of diamond pdc matrix bits:
1. Big hole design, chip space is big, high drilling efficiency in soft rock.
2. Cutting free surface, sharp blade, with self-sharpening feature, high drilling efficiency.
3. High resistance to wear.
4. According to stratum characteristics, selecting different drilling and surface structure, bit strong adaptability.
5. High effective utilization rate of drilling time and auxiliary time is short, effectively reduce the labor intensity of workers
and good comprehensive benefits.
PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations. The application include in mining, civil engineering and the oil and gas industries.

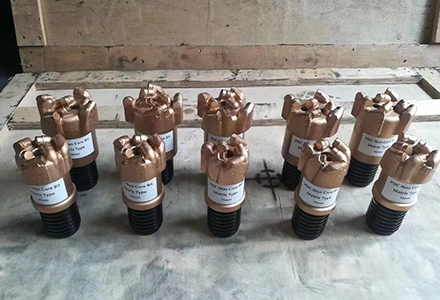

Generally, it include the Three Wings, Four Wings, Five wings or blades PDC Non-Coring Bits.









































TECHNICAL PARAMETERS
Steel body and Matrix body PDC drill bit for hard layer
Diameter Wings PDC Tip Thread
mm inch
       28   2 As request API,NQ,HQ,PQ,
AW,AWJ,or as request
32   2
       45                     2
54   3
55   3
65 2 1/2” 3
76 3” 3
89 3 1/2” 3
92 3 5/8” 3 / 4
95 3 3/4” 3 / 4
98 3 7/8” 3 / 4
102 4” 3 / 4
108 4 1/4” 3 / 4
114 4 1/2” 3 / 4
127 5” 3 / 4
133 5 1/4” 3 / 4
146 5 3/4” 3 / 4
152 6” 3 / 4
171 6 3/4” 3 / 4 / 5
191 7 1/2” 3 / 4 / 5
216 8 1/2” 4 / 5 / 6
Other item Customize as your request
