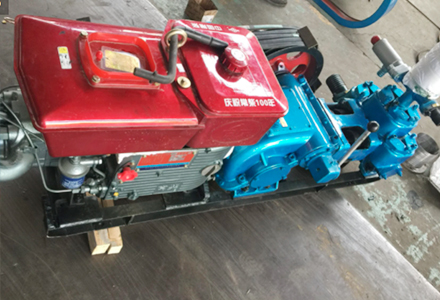

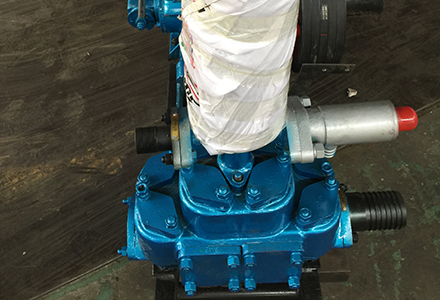

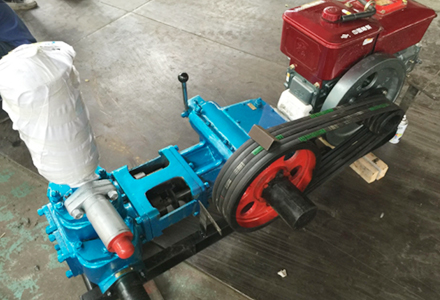

BW200 Mud Pump

BW-200 mud pump is horizontal double-acting reciprocating duplex piston pump.It is mainly used for feeding flushing fluid to feel drilling in core drilling process. It is lightweight,compact and is more suitable used in geological prospect.It’s mostly for 200m deep water well drilling.


Share With:
PRODUCT DESCRIPTION
BW-200 mud pump is horizontal double-acting reciprocating duplex piston pump.It is mainly used for feeding flushing fluid to feel drilling in core drilling process. It is lightweight,compact and is more suitable used in geological prospect.It’s mostly for 200m deep water well drilling.
Specification
Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in project.

Characteristics
1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling

Service
1. We have service team to supply professional guidance for installation.
2. Our quality inspection department will check each of machine before leaving the factory.
3. We offer one-year quality warranty for main body of machine.

























































TECHNICAL PARAMETERS

No. Model Unit BW200
1 Type   Horizontal double cylinder reciprocating double acting piston pump
2 Cylinder quantity   2
3 Cylinder diameter mm 80:65
4 Travel (mm) mm 85
5 Pump Speed Time/min 145
6 Rate of flow L/min 200 125
7 Pressure Mpa 4 6
8 Speed r/min 530
9 Pitch of belt pulley mm 385
10 Belt pulley mm B type,five solts
11 Power   Diesel engine
12 Egnine Brand   Changchai
13 Engine Model   ZS1105
14 Engine Power KW 13.2
15 Suction pipe dia.(mm) mm φ65 mm
16 Scupper pipe dia. mm φ37 mm
17 Dimensions(L×W×H) mm 1050×630×820
18 Weight Kg 480
